A practical guide for property managers, developers, and specifiers — covering panel styles, sizes, post spacing, installation, and matching gate systems.
WPC fence panels are available in three main styles: Full Slatted (gaps for airflow), Half Slatted (solid base, slatted top), and Full Privacy (solid panels). Heights range from 1.2m to 1.8m, with post spacing typically 1.5m to 2.0m. Posts are set in concrete, and panels are fixed with concealed clips. Matching gate panels can be ordered in the same finish.
Residential fencing defines privacy, controls access, and shapes the first impression of a community. For single-family homes and multi-family properties, the fence must also be practical: easy to maintain, consistent across long runs, and compatible with gate systems at every entrance.
This guide focuses on the practical side of WPC fence panels — styles, sizes, posts, installation, and matching gates. It is written for property managers, developers, and specifiers who need to make material and installation decisions with confidence.
WPC fence panels are available in three main styles. Each offers a different balance of privacy, airflow, and visual appearance.

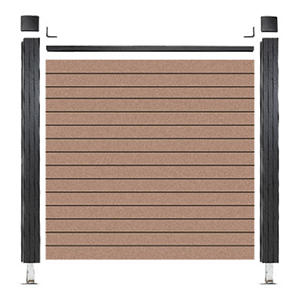

Solid panels with no gaps. Maximum screening for courtyards, pool surrounds, and boundary lines facing public areas.

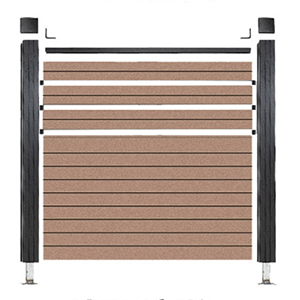

Solid lower section with slatted upper section. Provides privacy at eye level while allowing airflow and light above.

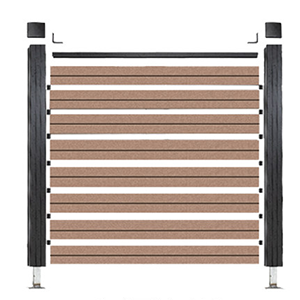

Horizontal boards with consistent gaps. Allows airflow and partial visibility — suitable for garden screens, utility areas, and walkways.
WPC fence panels are available in a range of sizes to suit residential boundary lines, garden screens, and community entrances.
Post spacing: Most residential WPC fence systems use post spacing between 1.5m and 2.0m. The exact spacing depends on panel thickness, wind load requirements, and local building codes. In exposed or high-wind areas, closer spacing and deeper concrete footings may be required.
WPC fence panels are installed using posts set in concrete. The panels are then fixed between the posts using concealed clips or screws.
Installation should be carried out by a qualified contractor, particularly where gates, access control, or high-wind conditions are involved.

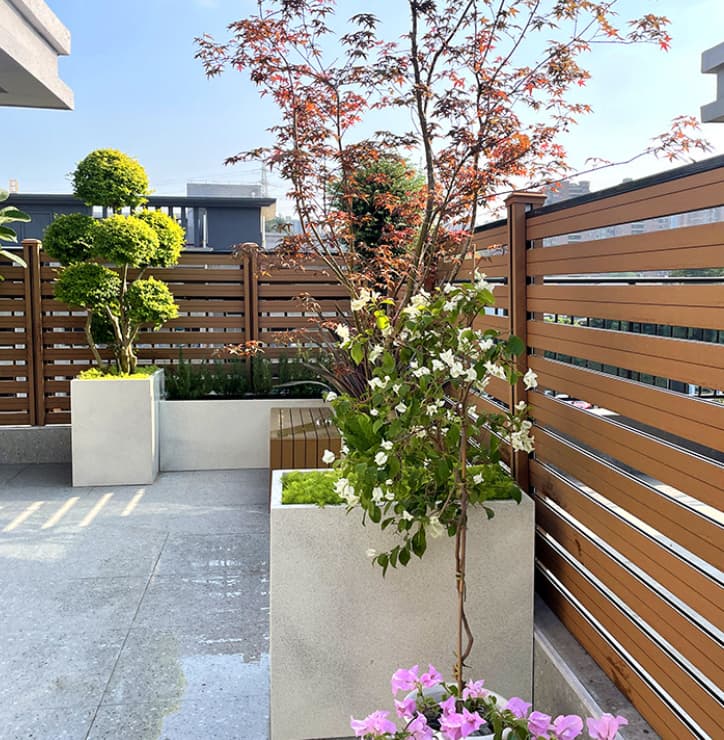

WPC fence panels can be supplied together with matching gate panels, so that fences, pedestrian gates, and driveway gates share the same finish and profile.
Gate width and height, panel finish, post size, hinge type, latch type, and any access-control requirements (keypad, intercom, card reader). Gates should be specified together with the fence to ensure post spacing and hardware are compatible.

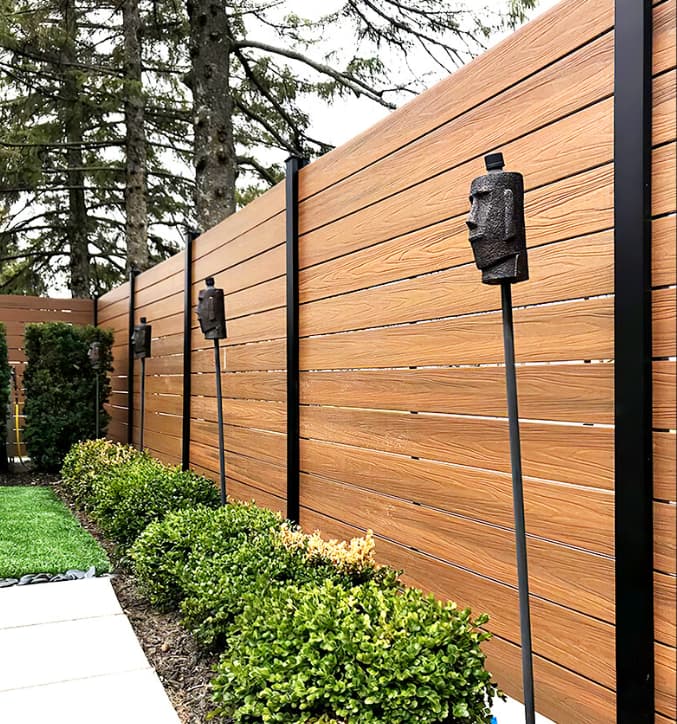

WPC fence panels do not require painting, staining, or sealing. Routine cleaning with mild soap and water is sufficient. Hardware should be checked periodically for tightness and corrosion.
Fence systems should be designed for the wind load requirements of the project location. Post spacing, footing depth, and panel fixing must be adequate for the local wind zone. For exposed or coastal sites, a qualified engineer should confirm the structural design. If specific wind load test data is required for approval, contact the manufacturer directly.
WPC fence panels are available in three main styles: Full Slatted (horizontal boards with gaps), Half Slatted (solid lower section, slatted upper section), and Full Privacy (solid panels with no gaps). Each style offers a different balance of privacy, airflow, and appearance.
Residential WPC fence panels typically range from 1.2m to 1.8m in height, with board widths of 150mm to 200mm and thickness around 20mm. Panel lengths can be customised to suit post spacing.
Post spacing for WPC fence panels is usually 1.5m to 2.0m, depending on panel thickness, wind load requirements, and local building codes. In high-wind or exposed areas, closer post spacing and deeper concrete footings may be required.
WPC fence panels are installed using posts set in concrete, with panels fixed between posts using concealed clips or screws. Post depth and footing size depend on fence height, soil conditions, and local wind load requirements.
No. WPC fence panels do not require painting, staining, or sealing. Routine cleaning with mild soap and water is sufficient. Hardware should be checked periodically for tightness and corrosion.
